Selected Works / 01

Sengupta Residence

The House of Framed Flows

Villa 33, IFS Villas, Greater Noida2021 – 2023

The challenge was not construction, but extraction: how to take a zone of silence out of a densifying city.

Three mature trees on the north-eastern edge, a Gulmohar and two African Tulips, were treated as fixed. The upper mass retreats behind them so the morning sun reaches the front lawn, while a deep south-western court holds shade and privacy. No open space is residual; each one is framed from somewhere, and therefore inhabited.

Two orthogonal walls of Delhi Quartzite rubble, laid by local masons, organise a tripartite plan timed to the day. Bedrooms take the morning on the north-east; a double-height core stays luminous through midday and opens onto both gardens; study and entrance buffer the afternoon heat on the south-west.

FilmTwo

The tripartite plan taken apart, floor by floor. Thirty seconds, silent, on a loop. Tap to pause.

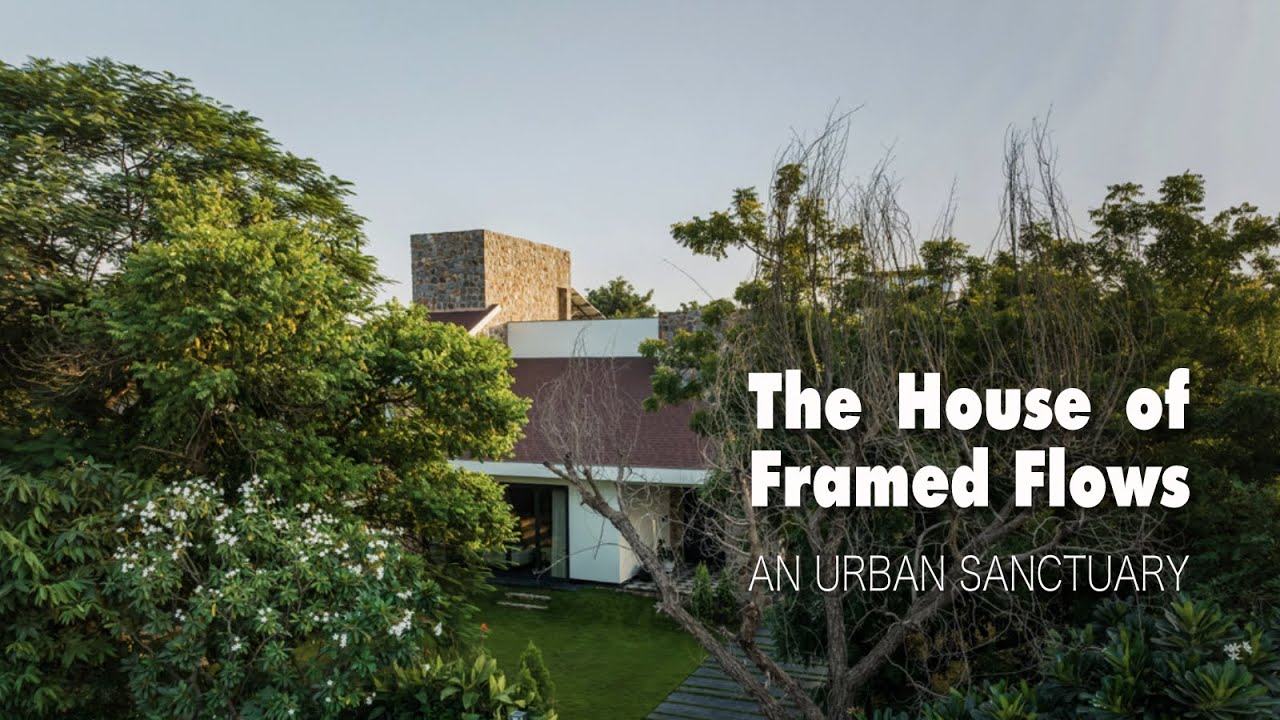

House of Framed Flows — the film. Plays here; the link opens it on YouTube.

The street edge

The plot sits in a villa development that builds to its boundaries. The house gives the street a low, quiet face and keeps its height back.

Morning light reaches the front lawn under the retained trees

The three trees

A Gulmohar and two African Tulips on the north-eastern edge were fixed before the plan was drawn. The upper mass steps back behind them.

The upper mass retreats behind the three retained trees

The deep court

On the south-west, a court cut deep into the mass holds shade through the afternoon and buffers the rooms behind it.

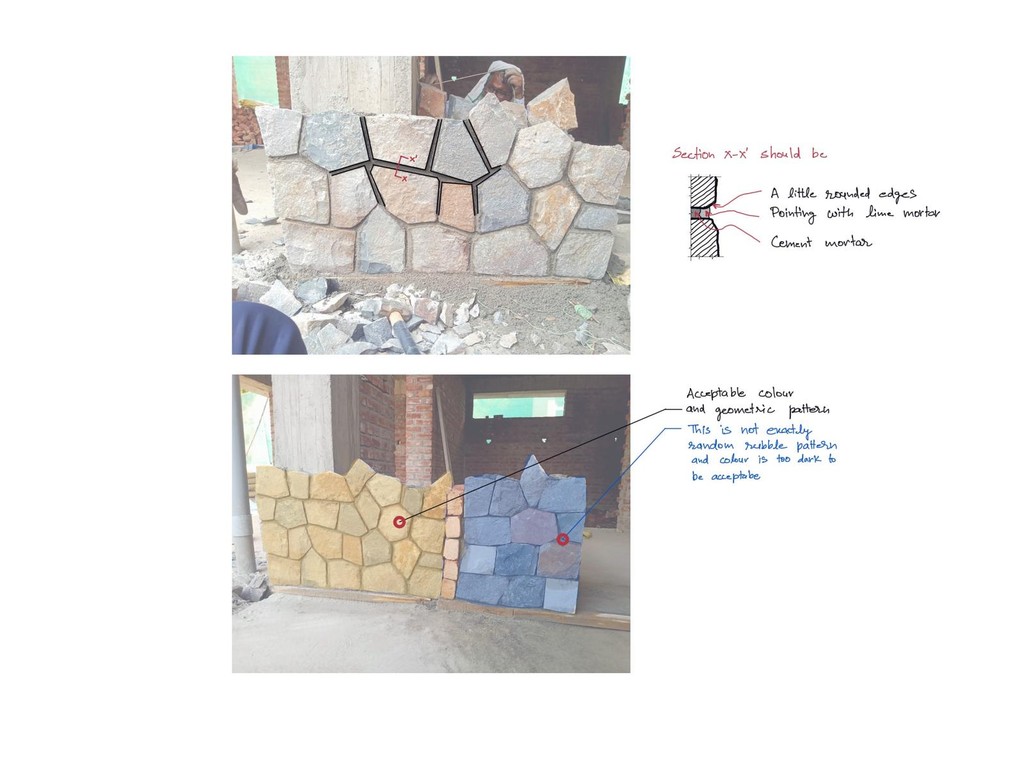

Delhi Quartzite rubble against exposed concrete

The upper mass, seen along the party edge

Entrance

The entrance room is the buffer: it takes the afternoon heat on the south-west so the core behind it does not have to.

The double-height core

The centre of the plan is one luminous volume open to both gardens, crossed at the upper level by a teak bridge and lit from a clerestory above.

The drawing room hinges between the two gardens

Midday light down the height of the volume

The full height, from the floor of the core

A teak mezzanine bridge, lit from the clerestory above

Living and kitchen

Bedrooms

The bedrooms take the north-east and therefore the morning. The ground-floor room opens straight onto the lawn.

Ground floor bedroom, opening to the lawn

Study

With the entrance, the study buffers the south-west. The two rooms that take the heat so the rest of the house does not.

The study window, cut into the rubble wall

Detail

Stone carried through into the wet rooms

Drawings7 sheets

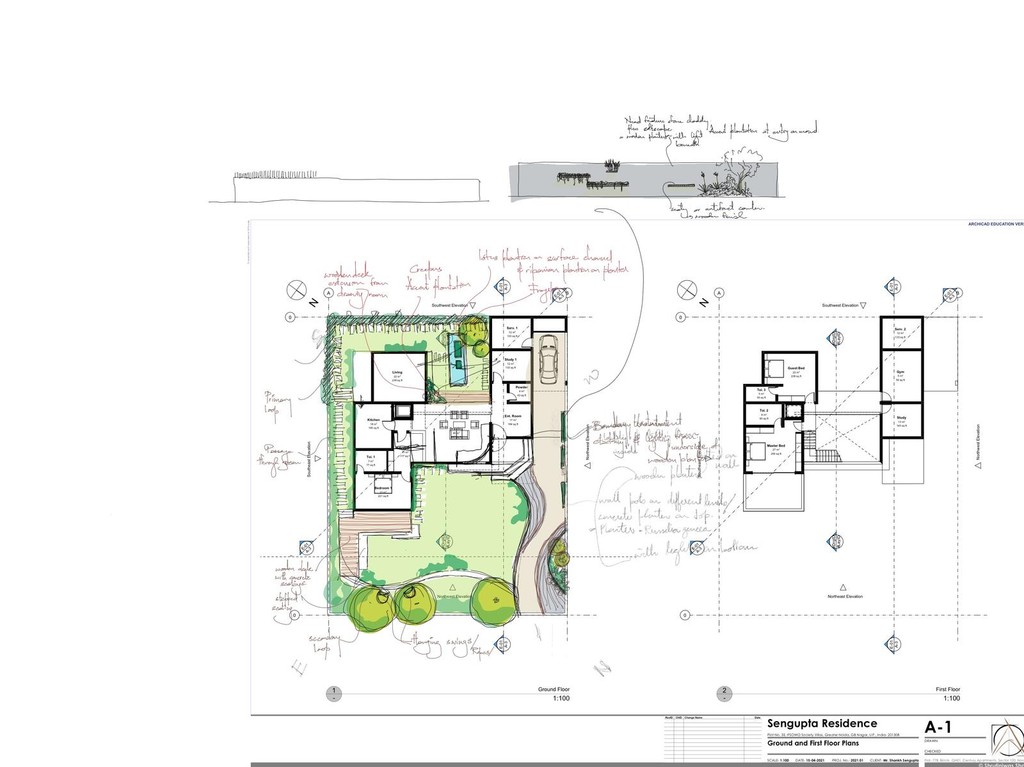

Plans read north up. The two orthogonal rubble walls are the thick lines; everything else is arranged against them.

Spatial arrangement, the tripartite plan timed to the day

Section 1, through the double-height core

“We used materials that age, rather than expire.”

Shrutiniwas Sharma

CreditsCompleted 2023

Location: Villa 33, IFS Villas, Greater Noida
Date: 2021 – 2023
Typology: Private residence
Plot area: 8,073 sq ft
Built-up area: 5,483 sq ft
Structure: RCC frame with Delhi Quartzite rubble masonry
Masonry: Local masons, Greater Noida
Photography: Ekansh Goel
Architect: STUDIO Shrutiniwas
Principal architect: Shrutiniwas Sharma
